Details

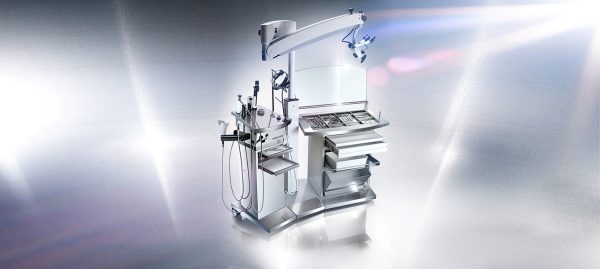

Despite its compact size all well-established Otopront standards are part of the SMART unit – such as to be pulled out stainless steel instrument trays with integrated tissue dispenser. Which means that for each patient a fresh instrument space is available within seconds. Instrument drawers with variable compartments.

Lateral (left/right) height-adjustable mounted swivel desks are used to store other instruments or diagnostic equipment as needed, such as the compact PES PILOT HDpro videoendoscopy system.

3 LED light sources, 2 preheating quivers and disinfection quiver, quiver for flexible optics and endoscope intermediate support.

An optional compressed air system including spray bottles with shatter protection and easy snap connection provides maximum working safety and comfort.

Hygiene and maintenance



Disinfection quiver
with Otopront double quiver system, quiver for flexible optics. endoscope intermediate support



Sophisticated hygiene as Otopront standard
Autoclavability of all handpieces, application parts (spray bottles, cannulas, adapters, etc.), removable covers and hoses. Quick fasteners on all hoses ensure easy cleaning and assembly.

Easy accessibility
for cleaning and maintenance

User-friendly, quick and easy exchange
of secretions glass containers, disinfectant solutions and replacement of filters. Disposable suction bottles such as ABBOT, BAXTER, SERRES etc. with volumes of 1 to 5 liters are compatible with the SMART unit.

Easy-to-usewater filter unit
for containment of 99.999 % of pseudomonas and legionella

With Otopront double quiver disinfection system
Provides recontamination protection of the optics and durability for full virucidal disinfectants

Disposable canulas
for spray blowers

Features

Basic model

• Various types of pumps selectable (dry running or piston pump)
• Suction hose rinsing unit
• Automatic suction bottle emptying
• Mirror reheating unit
• Instrument tray in the upper part, 2-stage, with plexiglass cover
• Instrument drawer
• Pullout panel with integrated paper roll
• Suction unit with non-vibrating, smooth-running vacuum pump, 58 l /min, max. vacuum 91 %
• Storage drawer with double pull-out
• Open compartment with electric socket for additional equipment

Most chosen optional extras

• Compressed air unit complete with fine regulation handpiece, 3 spray bottles, Politzer attachments, flow limiter and pressure gauge
• Double cold light source, each LED (CRI>95 %) with Otopront double quiver disinfection
• 38° C warm water rinsing device with autoclavable water filter unit
• “SuperBright LED” light source for flexible and very thin endoscopes
• Spittoon on swivel arm with second suction hose
• Swivel support for additional equipment
• Microscope holder with electricity supply
• Stainless steel edges on all drawers as additional mechanical protection
• Melamin drawers holding disinfectant solutions
• Built-in waste bin for infectious wastes, syringes, etc.
• Pedal-operated waste bin
• Detachable stainless-steel surfaces
• External suction hose system
• Free choice of colors, optionally 2-layer metallic paint



Instrument desks and cabinets

With the mobile instrument desk or the instrument cabinet, the SMART can be expanded into a complete ENT workstation.

Videoendoscopy

For workplace videoendoscopy the SMART is optimally expandable with our endoscopy system PES PILOT HDpro. The device is positioned centrally on the plateau of the SMART. In addition, a new “SuperBright LED” light source for flexible and very thin endoscopes can be integrated into the endoscopy centers.

Microscopy

The SMART is offered with either Carl Zeiss or Kaps microscopes.

Both microscopes obtain their light from a separate Otopront LED light source integrated in the SMART. Ideal daylight temperature (CRi> 95 %) and brightness (~ 1500 Lumens) of the Otopront LED optimise the microscope image.
