DICOM integration
Features
Clearly structured and userfriendly patient management
Patient data can be saved directly to the internal memory or to a USB stick.
In addition, data can be exchanged automatically with the practice IT system or the HIS.
Intuitive operation and navigation by touch or mouse
The device can be operated completely intuitively. Still photo/video mode is selected by foot pedal or by shutter release on the touchscreen.
Then the findings can be tagged directly on the PILOT-screen using the fingertip control.
All the functions, such as selecting an image or zoom, can be operated by finger tip control or alternatively controlled with the mouse.
Top quality images delivered by the latest chip technology

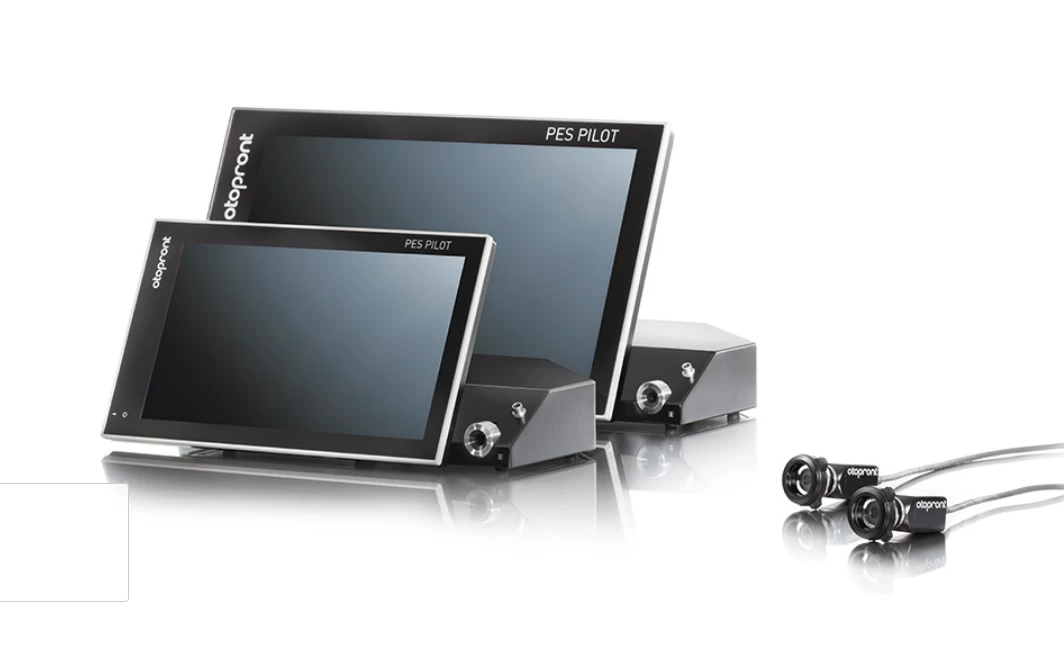

The PES PILOT HDpro deploys the latest C-MOS camera technology with superior resolution greater than full HD (1920 x 1200).
It allows maximum use of low light for optimum depth of illumination, resulting in a smooth, well-lit image which is sharp and rich in contrast.
With its high refresh rate and global shutter technology the PES PILOT HDpro is also ideal for videostroboscopy.
Otopront Picture Enhancement
Otopront Picture Enhancement (OPE) uses histological-physical findings to show tissue structures in greater detail through the differentiated use of blue and green spectral components.
The method makes use of the effect of the different absorption capacity of capillary vessels and surrounding tissue.
With this technology, conspicuous vessel and tissue patterns can be visually highlighted.
Details
15.6 or 21 inch capacitive touchscreen (no loss of contrast or brilliance)
Screen vertically swivable by 45°
Picture grabbing
Marking of medical evidence on screen by fingertip
Superior handling
With its front-mounted touchscreen and compact size the device can be incorporated directly into the working area (e.g. at the ENT unit). All functions can be operated conveniently with the use of the touchscreen, allowing the user to work as efficiently as possible.
Two additional monitors can also be connected to the PILOT-Screen. So the process of endoscopy can be made easier, for example by placing a monitor for the doctor at an angle behind the patient’s chair (removing the need to turn the head).
Detailed results can be shown to the patient on an additional patient monitor. The patient monitor can also be disabled at any time.
A second camera can also be incorporated (e.g. for a microscope) as well as an automatic switching system between the two cameras. As with all Otopront PES video systems, the PILOT’s compact size and ease with which it is set-up, allows the PES PILOT HDpro to be used on the move at different locations without requiring an additional monitor.
Video examples
PES PILOT HDpro – Video example
Double click on the video or bottom right selection of the video provides original playback in full screen Full HD (Requires a Full HD enabled device: PC, tablet or smartphone).
Shown is a recording of the Otopront PES PILOT HDpro in Full HD.
A rigid 0 ° endoscope with with 4 mm diameter at the PES PILOT HDpro Full HD camera was used.
The video has not been processed and matches the PES PILOT HDpro original recordings.
