Smart

سارا نصراللهی — Fri, 29 Aug 2025 16:20:43 +0000

Otopront's ENT treatment ...

SMART

mahdist73@yahoo.com — Mon, 26 Feb 2024 12:55:57 +0000

Details

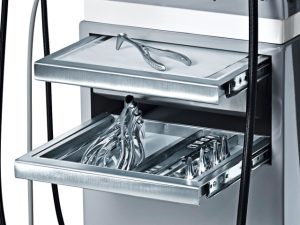

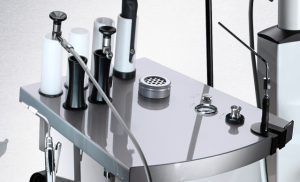

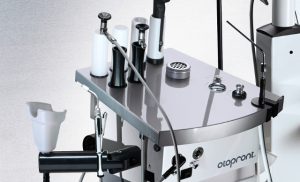

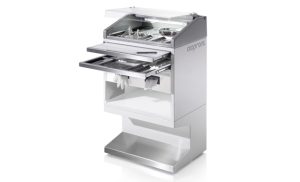

Despite its compact size all well-established Otopront standards are part of the SMART unit – such as to be pulled out stainless steel instrument trays with integrated tissue dispenser. Which means that for each patient a fresh instrument space is available within seconds. Instrument drawers with variable compartments.

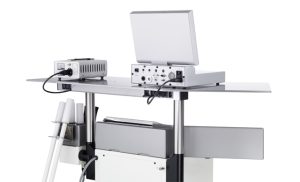

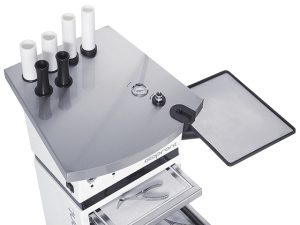

Lateral (left/right) height-adjustable mounted swivel desks are used to store other instruments or diagnostic equipment as needed, such as the compact PES PILOT HDpro videoendoscopy system.

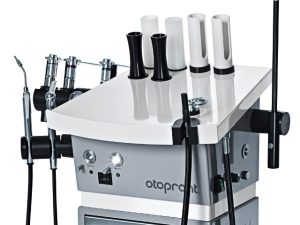

3 LED light sources, 2 preheating quivers and disinfection quiver, quiver for flexible optics and endoscope intermediate support.

An optional compressed air system including spray bottles with shatter protection and easy snap connection provides maximum working safety and comfort.

Hygiene and maintenance

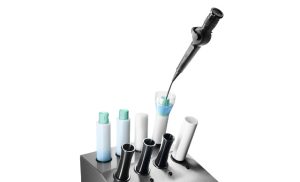

Disinfection quiver
with Otopront double quiver system, quiver for flexible optics. endoscope intermediate support

Sophisticated hygiene as Otopront standard
Autoclavability of all handpieces, application parts (spray bottles, cannulas, adapters, etc.), removable covers and hoses. Quick fasteners on all hoses ensure easy cleaning and assembly.

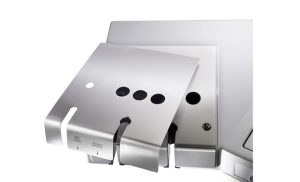

Easy accessibility
for cleaning and maintenance

User-friendly, quick and easy exchange
of secretions glass containers, disinfectant solutions and replacement of filters. Disposable suction bottles such as ABBOT, BAXTER, SERRES etc. with volumes of 1 to 5 liters are compatible with the SMART unit.

Easy-to-usewater filter unit
for containment of 99.999 % of pseudomonas and legionella

With Otopront double quiver disinfection system

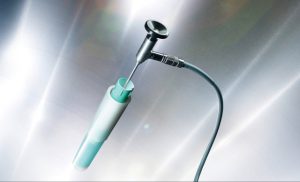

Provides recontamination protection of the optics and durability for full virucidal disinfectants

Disposable canulas
for spray blowers

Features

Basic model

Various types of pumps selectable (dry running or piston pump)
Suction hose rinsing unit
Automatic suction bottle emptying
Mirror reheating unit
Instrument tray in the upper part, 2-stage, with plexiglass cover

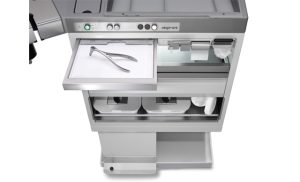

Instrument drawer
Pullout panel with integrated paper roll
Suction unit with non-vibrating, smooth-running vacuum pump, 58 l /min, max. vacuum 91 %
Storage drawer with double pull-out
Open compartment with electric socket for additional equipment

Most chosen optional extras

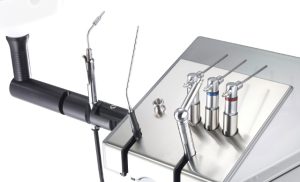

Compressed air unit complete with fine regulation handpiece, 3 spray bottles, Politzer attachments, flow limiter and pressure gauge
Double cold light source, each LED (CRI>95 %) with Otopront double quiver disinfection
38° C warm water rinsing device with autoclavable water filter unit
“SuperBright LED” light source for flexible and very thin endoscopes
Spittoon on swivel arm with second suction hose
Swivel support for additional equipment
Microscope holder with electricity supply
Stainless steel edges on all drawers as additional mechanical protection
Melamin drawers holding disinfectant solutions
Built-in waste bin for infectious wastes, syringes, etc.
Pedal-operated waste bin
Detachable stainless-steel surfaces
External suction hose system
Free choice of colors, optionally 2-layer metallic paint

Instrument desks and cabinets

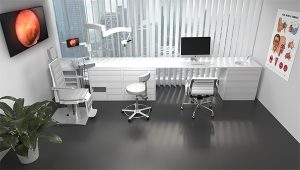

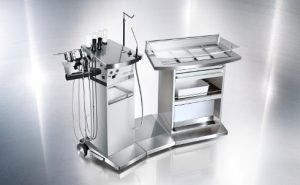

With the mobile instrument desk or the instrument cabinet, the SMART can be expanded into a complete ENT workstation.

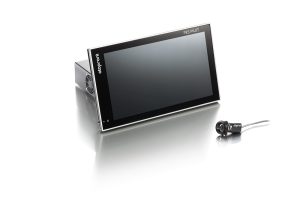

Videoendoscopy

For workplace videoendoscopy the SMART is optimally expandable with our endoscopy system PES PILOT HDpro. The device is positioned centrally on the plateau of the SMART. In addition, a new “SuperBright LED” light source for flexible and very thin endoscopes can be integrated into the endoscopy centers.

Microscopy

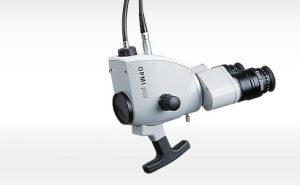

The SMART is offered with either Carl Zeiss or Kaps microscopes.

Both microscopes obtain their light from a separate Otopront LED light source integrated in the SMART. Ideal daylight temperature (CRi> 95 %) and brightness (~ 1500 Lumens) of the Otopront LED optimise the microscope image.

BASIC PLUS

admin — Fri, 01 Jun 2018 12:40:09 +0000

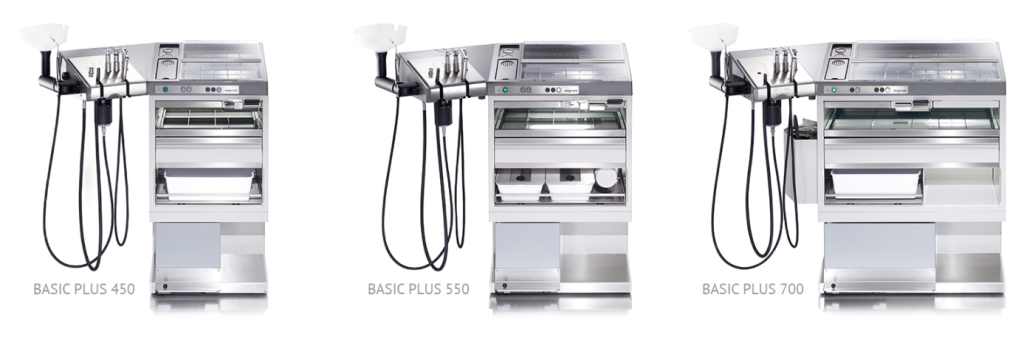

Basic Plus 450, Basic Plus 550 and Basic Plus 700

Discover the highest level of combination and customisation options

Modular extendable base casing

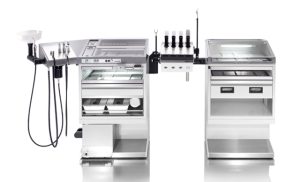

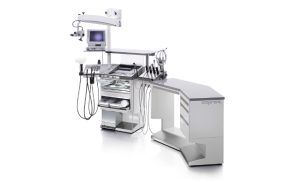

BASIC PLUS 550 mm with endoscopy center with 4 light outlets and instrument cabinet, also available as left-handed version

Individually combinable additional components
Instrument cabinets, desks and endoscopy centers as well as equipment details can be freely combined with each other

Diversity for every need
BASIC PLUS can be optionally integrated with 2 or 4 light sources as LED or Ultra Bright LED

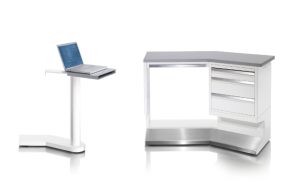

Desks
PC desk und instrument desk for all BASIC PLUS units

Details of the BASIC PLUS

BASIC PLUS is constantly optimised in features and functional details

Flexible configuration

Number and arrangement of storage and instruments trays as well as discard trays and storage areas are almost freely selectable into one BASIC PLUS unit.

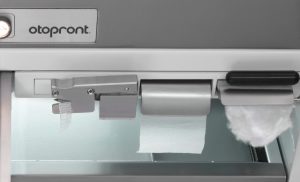

Dispensers for cotton wool and tongue holder tissues
operated with one hand for easier and more efficient work

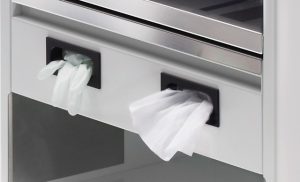

Elegant solutions
like easy to handle dispenser for examination gloves or Kleenex tissues

Spray bottles with shatter protection

and single click connection provide maximum working safety and comfort at every BASIC PLUS unit

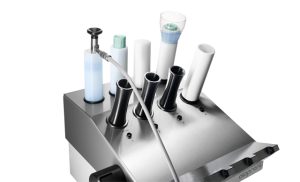

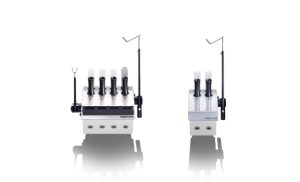

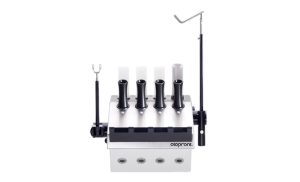

Endoscopy centre
with 4 light outlets, LED, light barrier controlled lighting, automatic activation of head light

3 preheating quivers, disinfection quiver
with Otopront double quiver with disinfection time monitoring, quiver for flexible optics and interim suspension for endoscopes.

High-plateau with concealed sockets>
for easy extension of diagnostic and examination BASIC PLUS equipment

Instrument modules
available as 450, 550 or 700, serve as an extension of the base BASIC PLUS body for extra storage space

Hygiene and maintenance of BASIC PLUS

Hygienically, technologically and economically up to date

Constant use of the latest technologies and materials in close cooperation with hospitals and practices provide valuable development impulses. The BASIC PLUS sets new standards in terms of hygiene requirements and technical characteristics and offers an outstanding practical handling as well as quick and easy maintenance.

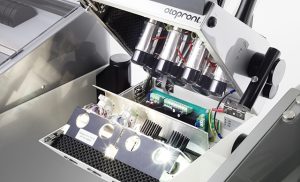

Easy accessibility

for cleaning and maintenance of the BASIC PLUS elements

Sophisticated hygiene

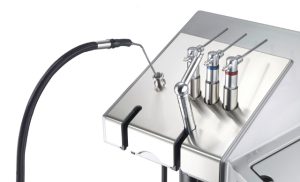

All handpieces and applied parts are fully autoclavable (water handles, spray handles, spray bottles, adapters, etc.)

Detachable surfaces and hoses
Quick-fit couplings on all hoses ensure easy assembly

Automatic suction hose rinse

With Otopront double quiver disinfection system
Decontamination protection and automatic disinfection time monitoring, durability for fully virucidal disinfectant

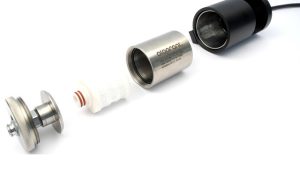

Easy-to-use water filter unit
for containment to 99.999 % of pseudomonas and legionella

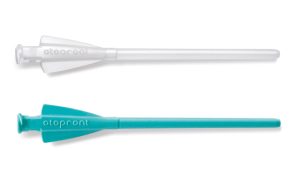

Disposable canulas
for spray blowers

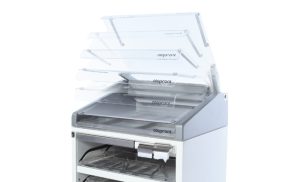

Softclose cover
for instrument cabinets

Features of the BASIC PLUS

Basic model equipment

Every BASIC PLUS ENT workstation is equipped with:

Suction unit with non-vibrating, smooth-running vacuum pump, 45 l /min, max. vacuum 93 %
Various types of pumps selectable (dry running or piston pump)
Suction hose rinsing unit
Compressed air unit complete with fine regulation handpiece, 3 spray bottles, Politzer attachments, flow limiter and pressure gauge
Mirror reheating unit
Instrument surface with Plexiglas cover
Instrument drawer
Pullout sideboard panel with integrated paper roll
Storage tray
Open compartment with electric socket for additional equipment

Most chosen optional extras

BASIC PLUS units can be expanded with:

Double or quadruple cold light source, each LED (CRI>95 %) with light barrier control, disinfection time monitoring and Otopront double quiver disinfection system
Ebdoscope rest, head lamp rest, both switching
“SuperBright LED” light source for flexible and very thin endoscopes
Spittoon on swivel arm with second suction hose
Mirror preheating unit for mirrors of different sizes
Heated instrument surface
High-plateau with concealed sockets
Swivel support for additional equipment
Microscope holder with electricity supply
Videoendoscopy system PES PILOT HDpro inkl. microscope camera
Stainless steel edges to protect areas of particularly high wear
Melamin drawers holding disinfectant solutions
Built-in waste bin for infectious wastes, syringes, etc.
Pedal-operated waste bin
Detachable stainless-steel surfaces
Outboard suction hose system
38° C warm water rinsing device with autoclavable water filter unit
Instrument trays with plexiglass front cover
Free choice of colors, optionally 2-layer metallic paint

Videoendoscopy

For workplace videoendoscopy the BASIC PLUS is optimally expandable with our endoscopy system PES PILOT HDpro. The device is positioned centrally on the plateau of the BASIC PLUS. An easily reachable camera mount can be attached to the BASIC PLUS unit. The hidden power strip and cable management of the Basic Plus prevent unnecessary unrest by dangling wires.

In addition, a new “SuperBright LED” light source for flexible and very thin endoscopes can be integrated into the endoscopy centers.

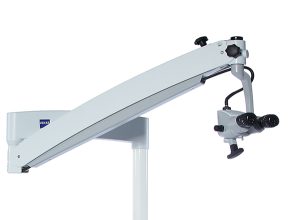

Microscopy

The BASIC PLUS is offered with either Carl Zeiss or Kaps microscopes.

Both microscopes obtain their light from a separate Otopront LED light source integrated in the BASIC PLUS. Ideal daylight temperature (CRi> 95 %) and brightness (~ 1500 Lumens) of the Otopront LED optimise the microscope image.

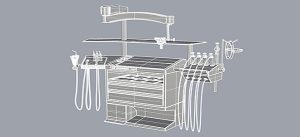

Special design

For special circumstances and special needs the BASIC PLUS can be modified to your liking.

The process for such a special design takes place in close collaboration between you and our sales people, to provide you with the best possible advice and to built a unit for your complete satisfaction – your personal BASIC PLUS treatment unit.
