Digital live imaging

PES Eco HD

Digital live imaging

https://negin-mahan.com/product/pes-eco-hd/feed/ 0 Video Nasopharyngoscopes VN-S and VN-P (CHIP-ON-THE-TIP) https://negin-mahan.com/product/video-nasopharyngoscopes-vn-s-and-vn-p-chip-on-the-tip/ https://negin-mahan.com/product/video-nasopharyngoscopes-vn-s-and-vn-p-chip-on-the-tip/#respond Sat, 16 Mar 2024 18:47:52 +0000 https://negin-mahan.com/?post_type=product&p=2375 Video Nasopharyngoscopes VN-S and VN-P (CHIP-ON-THE-TIP)

For high-resolution ... ]]> Video Nasopharyngoscope VN-S

High resolution and bright

High-resolution CCD-chip with high frame rate and large depth of field, optimised for stroboscopy.

Video Nasopharyngoscope VN-P

For paediatrics

Optimised for paediatric examinations with only 2.7 mm diameter and integrated light source.

Video examples





PES PILOT HDpro stroboscope with Otopront video nasopharyngoscope (flexible CHIP-ON-THE-TIP optics) – Example video

Shown is a recording of the Otopront PES PILOT HDpro stroboscope with Otopront video nasopharyngoscope (flexible CHIP-ON-THE-TIP optics).

Our video nasopharyngoscope and the integrated PES PILOT HDpro stroboscopy light source were used.

This combination enables the very high sharpness resolution of the movements of the vocal folds shown in the video.

You can see different slow motions and frequencies.

The video has not been post-processed and corresponds to the original PES PILOT HDpro stroboscope recordings.

]]> https://negin-mahan.com/product/video-nasopharyngoscopes-vn-s-and-vn-p-chip-on-the-tip/feed/ 0 PES PILOT HDpro https://negin-mahan.com/product/pes-2-1hd/ https://negin-mahan.com/product/pes-2-1hd/#respond Sat, 16 Mar 2024 18:20:07 +0000 https://negin-mahan.com/?post_type=product&p=2369 PES PILOT HDpro

The new standard in videoendoscopy

DICOM integration

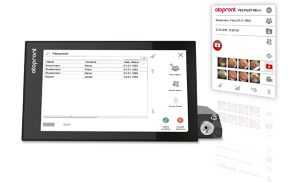

Features

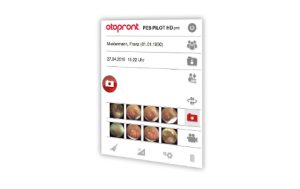

Clearly structured and userfriendly patient management

Patient data can be saved directly to the internal memory or to a USB stick.

In addition, data can be exchanged automatically with the practice IT system or the HIS.







Intuitive operation and navigation by touch or mouse

The device can be operated completely intuitively. Still photo/video mode is selected by foot pedal or by shutter release on the touchscreen.

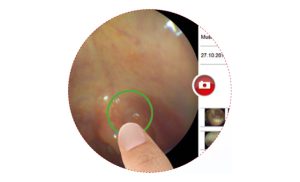

Then the findings can be tagged directly on the PILOT-screen using the fingertip control.

All the functions, such as selecting an image or zoom, can be operated by finger tip control or alternatively controlled with the mouse.



Top quality images delivered by the latest chip technology

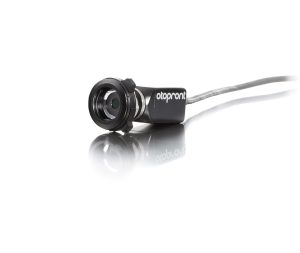

The PES PILOT HDpro deploys the latest C-MOS camera technology with superior resolution greater than full HD (1920 x 1200).

It allows maximum use of low light for optimum depth of illumination, resulting in a smooth, well-lit image which is sharp and rich in contrast.

With its high refresh rate and global shutter technology the PES PILOT HDpro is also ideal for videostroboscopy.







Otopront Picture Enhancement

Otopront Picture Enhancement (OPE) uses histological-physical findings to show tissue structures in greater detail through the differentiated use of blue and green spectral components.

The method makes use of the effect of the different absorption capacity of capillary vessels and surrounding tissue.

With this technology, conspicuous vessel and tissue patterns can be visually highlighted.

Details

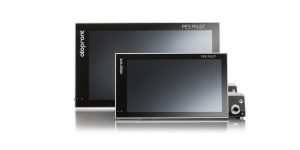

15.6 or 21 inch capacitive touchscreen (no loss of contrast or brilliance)

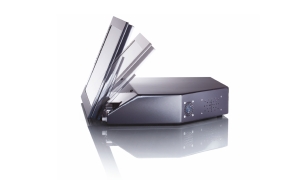

Screen vertically swivable by 45°











Picture grabbing











Marking of medical evidence on screen by fingertip













Superior handling

With its front-mounted touchscreen and compact size the device can be incorporated directly into the working area (e.g. at the ENT unit). All functions can be operated conveniently with the use of the touchscreen, allowing the user to work as efficiently as possible.

Two additional monitors can also be connected to the PILOT-Screen. So the process of endoscopy can be made easier, for example by placing a monitor for the doctor at an angle behind the patient’s chair (removing the need to turn the head).

Detailed results can be shown to the patient on an additional patient monitor. The patient monitor can also be disabled at any time.

A second camera can also be incorporated (e.g. for a microscope) as well as an automatic switching system between the two cameras. As with all Otopront PES video systems, the PILOT’s compact size and ease with which it is set-up, allows the PES PILOT HDpro to be used on the move at different locations without requiring an additional monitor.





Video examples



PES PILOT HDpro – Video example

Double click on the video or bottom right selection of the video provides original playback in full screen Full HD (Requires a Full HD enabled device: PC, tablet or smartphone).

Shown is a recording of the Otopront PES PILOT HDpro in Full HD.

A rigid 0 ° endoscope with with 4 mm diameter at the PES PILOT HDpro Full HD camera was used.

The video has not been processed and matches the PES PILOT HDpro original recordings.

]]> https://negin-mahan.com/product/pes-2-1hd/feed/ 0 PES PILOT HDpro stroboscope https://negin-mahan.com/product/pes-pilot-hdpro-stroboscope/ https://negin-mahan.com/product/pes-pilot-hdpro-stroboscope/#respond Sat, 16 Mar 2024 18:12:42 +0000 https://negin-mahan.com/?post_type=product&p=2363 PES PILOT HDpro stroboscope

Professional display quality of ... ]]> Features



Intuitive to use, frame-by-frame analysis, DICOM compliant

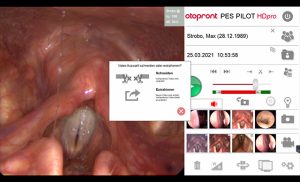

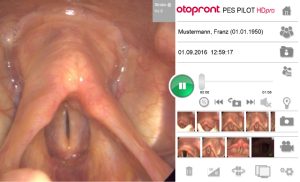

The PILOT software has been enhanced by useful stroboscopy features.

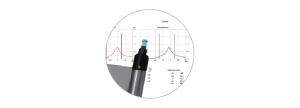

Captured videos can be analysed frame-by-frame, played back in ultra slow motion and cut later. Photos can then be extracted from the video – including dB and Hz numbers.

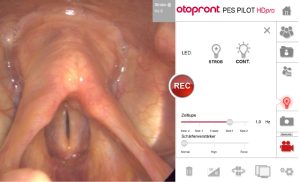

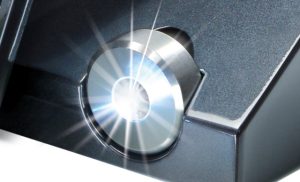

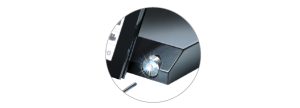

Highly efficient Otopront LED light source
for very short exposure times

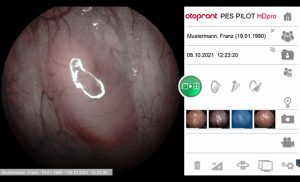

Image marker
to mark findings instantly











Frame-by-frame analysis
Picture grabbing











Freely adjustable slow motion
and exposure boost











Video examples



PES PILOT HDpro Stroboscope – video example

Bottom right selection of the video provides original playback in full screen Full HD (Requires a Full HD enabled device: PC, tablet or smartphone).

Shown is a Full HD recording of the Otopront PES PILOT HDpro stroboscope with a 70 ° laryngoscope, PILOT Full HD camera, Otopront HD lens and integrated stroboscope light source. This combination ensures a very high resolution of the movement of the vocal folds, as shown in the video.

The example shows various slow motions and frequencies.

The video has not been processed and matches the PES PILOT HDpro stroboscope original recordings.

PES PILOT HDpro stroboscope – video example

Bottom right selection of the video provides original playback in full screen Full HD (Requires a Full HD enabled device: PC, tablet or smartphone).

Shown is a  Full HD recording of the Otopront PES PILOT HDpro stroboscope with a 70 ° laryngoscope, PILOT Full HD camera, Otopront HD lens and integrated stroboscope light source. This combination ensures a very high resolution of the movement of the vocal folds, as shown in the video.

The example shows various slow motions and frequencies.

The video has not been processed and matches the PES PILOT HDpro stroboscope original recordings.

PES PILOT HDpro stroboscope with Otopront video nasopharyngoscope (flexible CHIP-ON-THE-TIP optic) – example video

Shown is a recording of the Otopront PES PILOT HDpro stroboscope with Otopront video nasopharyngoscope (flexible CHIP-ON-THE-TIP optic) and integrated PES PILOT HDpro stroboscope light source.

This combination ensures a very high resolution of the movement of the vocal folds, as shown in the video.

The example shows various slow motions and frequencies.

The video has not been processed and matches the PES PILOT HDpro stroboscope original recordings.

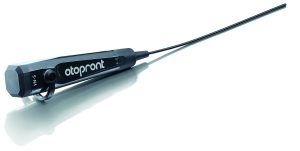

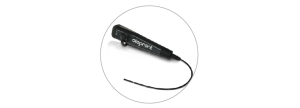

CHIP-ON-THE-TIP video nasopharyngoscope

The stroboscope can be optionally equipped with the Otopront CHIP-ON-THE-TIP video nasopharyngoscope. Simple plug & play connection and ergonomic handling allow easy operation.

.

Flexible placement thanks to compact dimensions





Space-saving installation directly on the unit. Optionally, the stroboscope can be positioned on individually configurable trolleys.

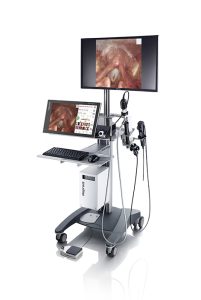

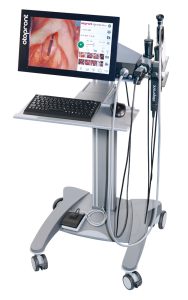

The picture shows the stroboscope on a trolley with printer and storage quivers for endoscopes.

.

Stroboscope on equipment trolley with printer, storage quivers for endoscopes and additional screen as well as rechargeable battery for mobile use in outpatient surgery, on the patient bed or in changing treatment rooms

.

Superior handling

With its front-mounted touchscreen and compact size the device can be incorporated directly into the working area (e.g. at the ENT unit). All functions can be operated conveniently with the use of the touchscreen, allowing the user to work as efficiently as possible.

Two additional monitors can also be connected to the PILOT screen. So the process of endoscopy can be made easier, for example by placing a monitor for the doctor at an angle behind the patient’s chair (removing the need to turn the head).

Detailed results can be shown to the patient on an additional patient monitor. The patient monitor can also be disabled at any time.

A second camera can also be incorporated (e.g. for a microscope) as well as an automatic switching system between the two cameras. As with all Otopront PES video systems, the PILOT’s compact size and ease with which it is set-up, allows the PES PILOT HDpro to be used on the move at different locations without requiring an additional monitor.

]]> https://negin-mahan.com/product/pes-pilot-hdpro-stroboscope/feed/ 0 PILOT Diagnostic Center https://negin-mahan.com/product/pilot-diagnostic-center/ https://negin-mahan.com/product/pilot-diagnostic-center/#respond Sat, 16 Mar 2024 18:05:35 +0000 https://negin-mahan.com/?post_type=product&p=2358 PILOT Diagnostic Center

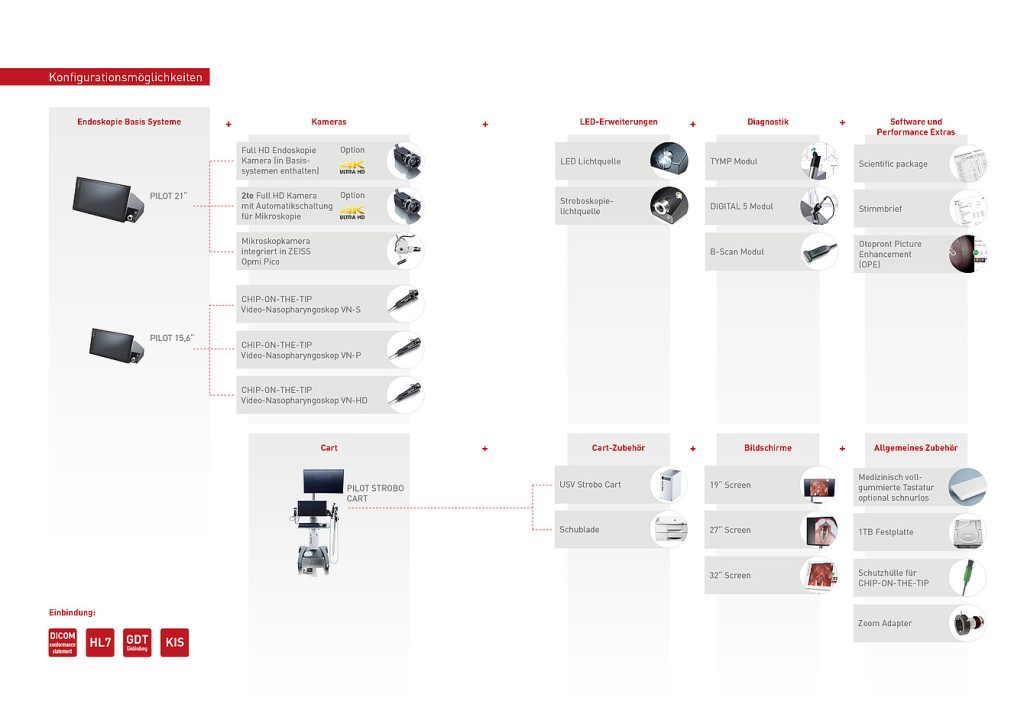

System for diagnostics

PES PILOT HDpro

  • Full HD/4K photo and video recording
  • Operation by touch screen or foot pedal
  • Patient and analysis software
  • Full connectivity





STROBOSCOPE

  • Freely adjustable high-power LED
  • Hz and dB data integrated in the video
  • Frame-by-frame analysis; image extraction

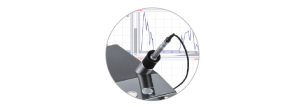

TYMP module

  • Fully automatic impedance measurement
  • Compliance measurement in just two seconds
  • Exact automatic measuring system allows one-hand operation



DIGITAL 5 module

  • Ultrasound procedures: A-mode, 4.25 MHz
  • Amplification infinitely variable (65 – 120 dB)
  • Optional single image or comparison image display

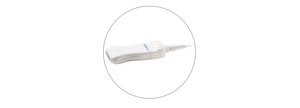

B-Scan module

  • Frequency range 6.0-11 MHz
  • Examination modes: B, M, 2B, THI, Color, Power, PW
  • Excellent image quality in pocket size



CHIP-ON-THE-TIP Video Nasopharyngoscope

  • High resolution, bright and true color images
  • Operation via touch screen or foot pedal
  • FEES and general dysphagia examinations







]]> https://negin-mahan.com/product/pilot-diagnostic-center/feed/ 0 ENDOSCOPES https://negin-mahan.com/product/endoscopes/ https://negin-mahan.com/product/endoscopes/#respond Tue, 23 Jan 2024 18:21:22 +0000 https://negin-mahan.com/?post_type=product&p=1849

The Otopront Optics series was ... ]]> Our endoscopes for ENT provide you with optimal images of the nasopharynx, nasal and oral cavities as well as the trachea and stroboscopic observations of the larynx. Below you will find our rigid endoscopes and laryngoscopes as well as the flexible nasopharyngoscopes.
